تفاصيل المنتجات

المنزل المنتجات

Eco Friendly PVC Gypsum Ceiling Materials Providing Sustainable Options for Green Building and Energy Construction Projects

الاسم التجاري:	SUNHOUSE
رقم الموديل:	TH0005
الـ MOQ:	100
السعر:	$0.90-1.60

معلومات مفصلة

وصف المنتج

معلومات مفصلة

مكان المنشأ:

قوانغدونغ، الصين

ضمان:

1 سنة

خدمة ما بعد البيع:

الدعم الفني عبر الإنترنت ، التفتيش في الموقع ، قطع الغيار المجانية

القدرة على حل المشروع:

التصميم الجرافيكي، تصميم النماذج ثلاثية الأبعاد، الحل الشامل للمشاريع

طلب:

فندق وسقف Oiffer وديكور / فندق إنتيريون

نمط التصميم:

حديث

وظيفة:

حريق ، عزل حراري ، مقاوم للرطوبة ، مقاوم للعفن ، مقاوم للدخان ، ممتص للصوت ، عازل للصوت ، مقاوم للما

ميزة:

أسقف فنية - أسقف على شكل خلية نحل - أسقف متكاملة - أسقف مثقبة

شكل بلاط السقف:

المستطيل

نوع بلاط السقف:

أسقف PVC

مقاس:

595 × 595 ملم ، 600 × 600 ملم ، 603 × 603 ملم ، 605 × 605 ملم

سماكة:

7 مم ، 7.8 مم ، 8 مم ، 9 مم ...

حافة:

حافة مربعة بشريط أو بدون شريط

كثافة:

280 ~ 350 كجم / م 3

مواد خام:

الجبس بورد

سطح:

فيلم PVC مستورد أو محلي

شهادة:

ISSO / CE متاح

موك:

1 * حاوية 20GP

عينة مجانية:

متاح في أي وقت

إبراز:

Eco friendly PVC gypsum ceiling,Sustainable gypsum ceiling materials,Green building PVC ceiling

Sustainable gypsum ceiling materials

Green building PVC ceiling

وصف المنتج

PVC Laminated Gypsum Ceiling Panels 595×595mm – Moisture Resistant Decorative Ceiling Tiles

These PVC laminated gypsum ceiling panels consist of a high-density gypsum core bonded with a durable PVC film layer. They are engineered for suspended ceiling systems in environments requiring cleanability, moisture resistance, and acoustic performance. The panels are produced under controlled factory conditions and comply with common international building material standards for interior applications.

Technical Specifications

Parameter	Specification
Nominal Sizes	595×595 mm, 600×600 mm, 603×603 mm, 605×605 mm
Thickness Range	7.0 mm – 9.0 mm
Edge Configuration	Square edge (tape reinforced or plain)
Core Density	280 – 350 kg/m³
Base Material	Gypsum core with additives for dimensional stability
Surface Layer	PVC film lamination (matte, satin or textured finish)
Key Performance	Moisture resistant, wipe-clean surface, basic fire retardant properties, sound absorption (perforated variants)
Available Surface Patterns	Plain, perforated (random holes or regular), sand texture, geometric, wood grain effect
Grid Compatibility	Standard 24mm or 15mm T-bar suspended ceiling grid
Typical Applications	Commercial offices, hotels, medical facilities, educational buildings, retail spaces, residential corridors

Installation & Handling Notes

Important Considerations:
• Store panels flat in a dry, well-ventilated area. Avoid stacking more than 10 panels high to prevent deformation.
• Install only in environments with relative humidity below 90% and temperature between 5°C and 40°C.
• Cut panels using a fine-tooth saw or utility knife. Wear dust mask and eye protection when cutting to minimize gypsum dust inhalation.

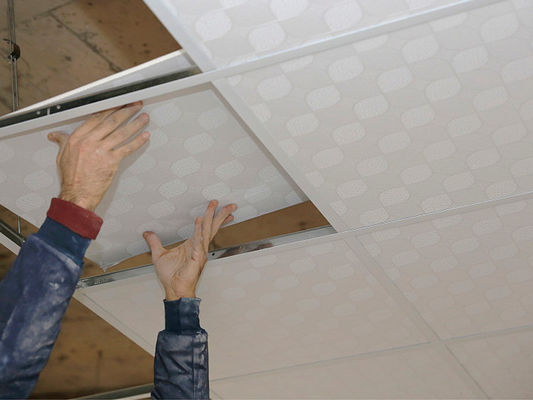

• Ensure the T-bar grid is level and securely fixed before installation. Allow 24 hours for panels to acclimatize to room conditions before fixing.
• Clean surface with a soft cloth and mild detergent. Do not use abrasive cleaners or solvents that may damage the PVC film.
• For perforated patterns, periodic inspection of dust accumulation in holes is recommended for optimal acoustic performance.

Project References

Selected Supply Cases:

• Supplied 28,000 m² of 8mm perforated PVC laminated panels for a Grade-A office building in Southeast Asia. The ceiling system contributed to improved indoor acoustics and easy maintenance in open-plan workspaces.

• Delivered 15,000 m² of 7.8mm plain-finish panels for a chain hotel renovation project. The moisture-resistant surface performed well in high-humidity bathroom and corridor areas.

• Provided 9,500 m² of 9mm sand-texture panels for a hospital outpatient department, meeting requirements for cleanability and low particulate emission.

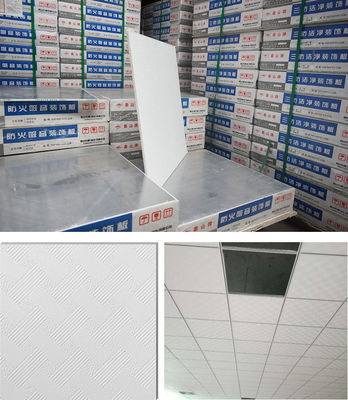

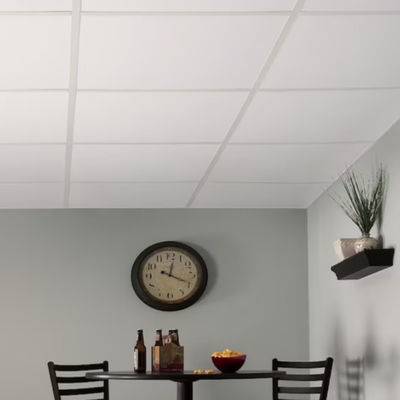

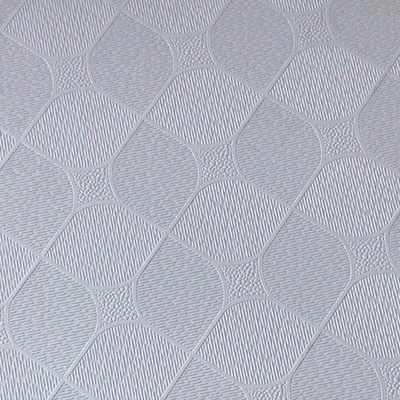

Product Gallery

Frequently Asked Questions

Q1. What is the recommended storage condition?

A: Panels should be stored flat on level ground in a dry warehouse. Avoid exposure to direct sunlight or high humidity for prolonged periods.

Q2. What payment and delivery terms are available?

A: Standard terms are 30% T/T deposit and 70% balance before shipment, or L/C at sight. We support FOB, CFR and CIF terms.

Q3. What is the typical production lead time?

A: For standard specifications, lead time is approximately 20–25 days after deposit receipt. Custom patterns may require additional time.

Q4. Do you support OEM / custom patterns?

A: Yes. We can produce according to customer-provided designs, colors, or patterns, subject to minimum order quantities.

Q5. Are samples available?

A: Free samples of standard items can be provided. The buyer covers the courier freight cost.
